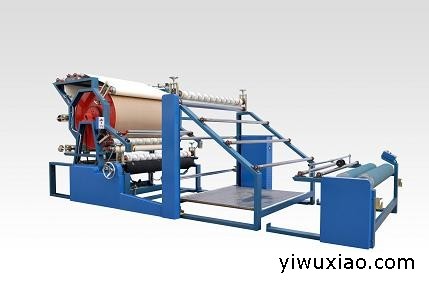

TH-120C 贴合机
TH-120C Laminating Machine
用途：泡棉、布类、PVC、EVA、上胶贴合。制鞋、制帽、手套、手提包、皮衣、沙发、汽车坐垫等原料的上胶贴合。特点：(1) 整机设计注重强化性能的稳定和安全检制；(2) 根据布料和胶水的不同要求，量身定做各种规格的硬烙上胶轮，有效提高贴合品质、减少胶水的损耗；(3) 硬烙上胶轮采用耐高温钢带，压布过程进布均匀；(4) 采用汽缸取代弹簧压轮，提高机械整体速度；技术参数：(1) 电源/功率：380V/35KW(2) 动力：3HP+2HP (3) 加热滚筒规格：Φ1200mm×1830mm (4) 工作宽度：1700mm(5) 工作速度：0~30码/分钟(6) 主机尺寸：7800mm×2600mm×2400mm(7) 重量：2200KGFunction:This machine is used for the glue lamination of foam, fabrics, PVC, EVA as well as the materials for making shoes, hats, gloves, handbags, leather garments, sofa, seat cushions of the car and etc.Features:(1) The design of the complete machine emphasizes on the stable performance and secure supervision.(2) According to the request of the cloth and the glue, a variety of specification chromium rollers are made by measurement, which improved the lamination quality effectively and decreased the glue consumption.(3) It adopts the steel belt of high temperature resistance on hard chromium roller and the process of pressing cloth proceeds evenly.(4) Replacing the spring pressing roller with the cylinder which raises the whole speed.Technical parameter:Power supply/power：380V/35KWMotion: 3HP+2HPSpecification of the heating roller: Φ1200mm×1830mmWorking width: 1700mmWorking speed: 0~30yards/minDimension of the machine: 7800mm×2600mm×2400mmWeight: 2200KG欢迎广大用户来电咨询，联系人：陈佩英（手机：15817935595），谢谢支持！
