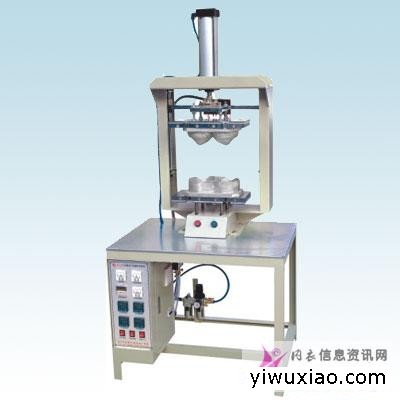

KV-168C/C-0 双温控气动罩杯定型机
KV-168C/C-0 FOAM CUP MOLDING MACHINE
用途：主要用于内衣模杯产品及其它同类产品的定型生产。
特点：结构简单，操作便捷。可分为二温控和四温控。产品物超所值，成本低、生产效率高。
技术参数：
电源/功率：220V/4KW
电热片规格：Φ12×180mm×500W-220V
模台尺寸：360mm×175mm
机台尺寸：800mm×600mm×1700mm
适用物料：文胸的热压定型
适用模具：文胸棉杯模具
重量：100KG
Function: It is suitable for producing molded bra cups and other similar products.
Features: The structure is simple and it is easy to operate. It is divided into two temp controlled and four temp controlled. Excellent in quality and at a reasonable price, it has high production efficiency but low cost.
Technical parameter:
(1) Power supply/power: 220 V/4KW
(2) Specification of the electro-thermal piece: Φ 12×180mm×500W-200V
(3) Dimension of the mould table: 360mm×175mm
(4) Dimension of the machine: 800mm×600mm×1700mm
(5) Applicable material: the thermo-compression of bra
(6) Applicable moulds: moulds for foam cups
(7) Weight: 100KG
