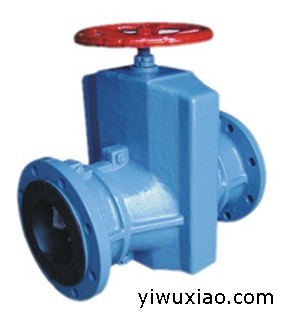

主要连接尺寸及外型尺寸
| 公称通径 | 主要连接尺寸及外型尺寸 Main outling dimensions and connection dimensions | 重量 （KG） | |||||
| L | D | D1 | D2 | b | z-φ | ||
| 20 | 135 | 105 | 75 | 55 | 16 | 4-14 | 2.5 |
| 25 | 145 | 115 | 85 | 65 | 16 | 4-14 | 3 |
| 32 | 160 | 135 | 100 | 78 | 18 | 4-18 | 4 |
| 40 | 180 | 145 | 110 | 85 | 18 | 4-18 | 6 |
| 50 | 210 | 165 | 125 | 100 | 20 | 4-18 | 7.5 |
| 65 | 250 | 185 | 145 | 120 | 20 | 4-18 | 9.5 |
| 80 | 300 | 190 | 160 | 135 | 22 | 4-18 | 16 |
| 100 | 350 | 215 | 180 | 155 | 22 | 8-18 | 20 |
| 125 | 430 | 245 | 210 | 185 | 25 | 8-18 | 28 |
| 150 | 500 | 280 | 240 | 210 | 25 | 8-23 | 43 |
| 200 | 650 | 335 | 295 | 265 | 32 | 8-23 | 80 |
| 250 | 800 | 390 | 350 | 310 | 32 | 12-23 | |
| 300 | 950 | 562 | 445 | 400 | 32 | 12-23 | |
