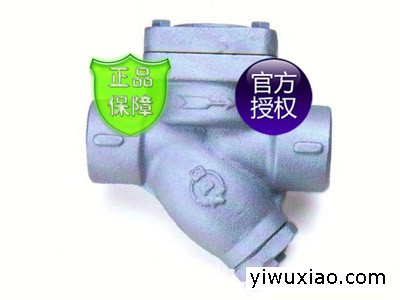

ST-T3A疏水阀台湾317-ST-T3B热动力疏水阀

2016-03-15 15:03 浏览:573

价格:￥10.00/台
起订:1台
供应:100台
发货:3天内

(ST-8LS) CAST IRON STEAM TRAP 16K SCREWED END

* Please name the model No. (ST-8LS) when negotiation.
* Thread: BS21, ANSI B2.1 or DIN-259.
* Working Temperature: 120℃
* Max. Temperature: 220℃

* Test Pressure: Body 32 kgf/cm2 (Hydrostatic)
* Working Pressure: 0.3 kgf/cm2 – 16 kgf/cm2

Material:
Model:	ST-8LS
Body	IRON
Bonnet/Plug	IRON
Seat	SS 410
Disc	SS 304
Seal	PTFE
Packing	PTFE
Screen	SS 304

DIMENSION					mm
Size	inch	1/2	3/4	1
Size	mm	15	20	25
L		95	105	110
H		56	65	70

(ST-T6F) CAST IRON STEAM TRAP MANUAL TYPE FLANGED END

* Please name the model No. (ST-T6F) when negotiation.

* End Flange Dimensions: Acc. to JIS 10K or ANSI 150 LBS.

* Max. Temperature: 220℃

* Test Pressure: Body 32 kgf/cm² (Hydrostatic)

* Working Pressure: 0.3 kgf/cm² – 16 kgf/cm²

Material:
Model:	ST-T6F
Body	IRON
SCREEN	SS 304
GASKET	ASBESTOS
NUT	IRON
BODY CAP	IRON
NUT	IRON
DISC	SS 420
DRAIN PLUG	SS 304
WASHER	ASBESTOS
